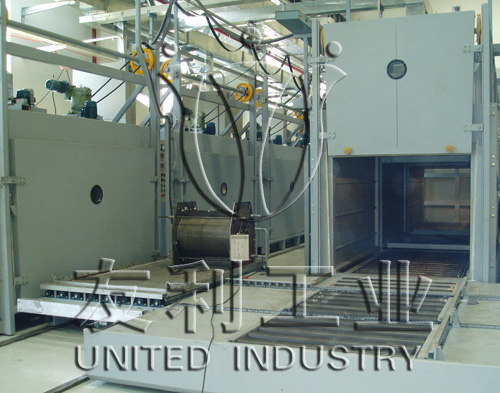

coil vacuum drying equipment
coil vacuum drying equipment;
transformer coil drying equipment with traditional drying cycle is long, the
drying is finished will damp the phenomenon and disadvantages such as large
energy consumption per unit of product. In order to meet the requirements of
the automatic production mode of mutual inductor, a number of fully automatic
coil vacuum drying tunnels have been developed in our company. Compared with
the same products, this kind of product has the advantages of high drying
automation, short drying cycle and less energy consumption per unit work piece.
It is well received by customers.
Our UB series curing furnace has good temperature uniformity, various flexible air supply modes, mature and reliable control system and beautiful appearance. It has been widely applied in the national epoxy casting dry and non envelopment dry production enterprises.
Our company has a wide range of customers in the transformer manufacturing industry, and has accumulated rich experience. We can provide various heating methods, air supply modes and control systems for customers according to different products and processes. Make the customer's product achieve the best drying and curing effect.
Details
The performance characteristics.
1. The thermal insulation material adopts low thermal conductivity high quality insulation cotton, and the energy saving effect is obvious.
2. the program of intelligent controller, the P I D parameter self-tuning, solid state relay power adjustment, contactless continuous adjustment, automatic completion of the whole process of drying process, can meet the requirements of any curing curve, simple operation, reliable performance; electrical control components selection at home and abroad, the reliability of electric control part to achieve the optimal curing furnace;
3. By using optional paper recorder, printing record, paperless recorder or computer centralized control, we monitor the whole process and analyze the results of drying and curing.
4. According to the different placement of the baked products, the reasonable hot air circulation mode (top heating, vertical air supply, bottom heating horizontal air supply, side heating and vertical air supply) is adopted to make the temperature in the studio more uniform and the coil drying effect is better.
5. The ultra - temperature alarm system is set up, when the temperature is abnormal, it can cut off the heating power and send out the sound and light alarm.
6. The low voltage lighting system and the observation window can be selected to observe the solidifying condition of the workpiece at any time.
7. Laying track at the bottom, the different driving modes, such as manual drive, blunt rack drive and traction trolley drive, can be selected according to the different weight of the baked products.
|
|
UB-1 |
UB-2 |
UB-3 |
UB-4 |
UB-5 |
UB-6 |
UB-7 |
|
Studio mm £¨W*D*H£© |
1200¡Á1700 ¡Á1000 |
1500¡Á1600 ¡Á1600 |
2000¡Á2000 ¡Á2000 |
2000¡Á3000 ¡Á2000 |
2000¡Á350 0¡Á2000 |
2200¡Á4000 ¡Á2000 |
3000¡Á5000 ¡Á3000 |
|
Temperature£¨¡æ£© |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
Supply voltage(V) |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
|
Power frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Heating Rate£¨kw£© |
18 |
27 |
45 |
54 |
63 |
72 |
96 |
|
Temperature uniformity (%) |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
|
Temperature fluctuation£¨¡æ£© |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
