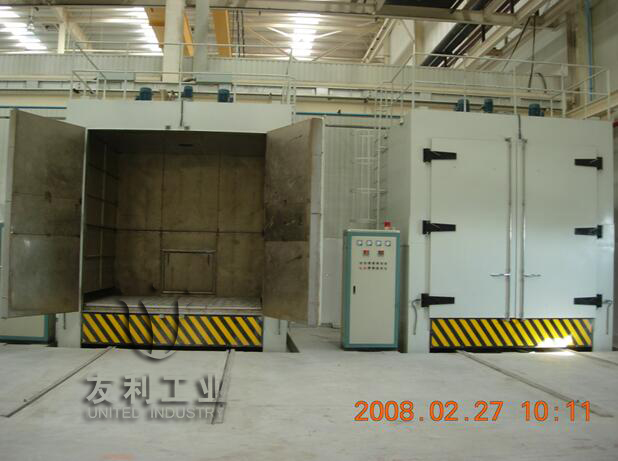

Motor lacquer oven
Motor soaking and curing furnace
UA series of high safety and energy saving type dryness boxes are mainly used in the manufacturing industry, such as motor and electrical appliances. In these industries, coil immersion drying is a key process, and the traditional drying box are not uniform, the studio drying temperature in the drying process of more safety and other defects, the technical personnel of our company after years of exploration, improve and perfect gradually, formed a series of UA products.
Details
Main technical parameters
|
|
UA-1 |
UA-2 |
UA-3 |
UA-4 |
UA-5 |
|
Studio£¨W*D*H£©mm |
1800¡Á2000¡Á1700 |
1800*2000*2000 |
1800*2600*1700 |
1800*2600*2000 |
1800*3000*2000 |
|
Demension£¨W*D*H£©mm |
2720*2800*2500 |
2720*2800*2800 |
2720*3400*2500 |
2720*3400*2800 |
2720*3800*2800 |
|
voltage£¨V£© |
3-380 |
3-380 |
3-380 |
3-380 |
3-380 |
|
ëŠÔ´îlÂÊ£¨HZ£© |
50 |
50 |
50 |
50 |
50 |
|
Temperature£¨¡æ£© |
250 |
250 |
250 |
250 |
250 |
|
¼ÓŸá¹¦ÂÊ£¨kw£© |
36 |
40 |
45 |
51 |
54 |
|
Temperature uniformity (%) |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
|
Temperature fluctuation£¨¡æ£© |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
|
“QšâÁ¿£¨M3/H£© |
500 |
500 |
700 |
700 |
1000 |
|
ÈÜ„©ÅÅ·ÅÄÜÁ¦£¨L/H£© |
2.5 |
2.5 |
3.5 |
3.5 |
5 |
|
“QŸáЧÂÊ£¨%£© |
80 |
80 |
80 |
80 |
80 |
|
Weight£¨T£© |
2.5 |
3 |
3.5 |
3.8 |
4 |
Note: non standard products can be designed and manufactured according to the requirements of the user.
Performance characteristics
The energy saving
The heat preservation material adopts low thermal conductivity high quality insulation cotton, and the energy saving effect is obvious.The high efficiency heat exchanger has better temperature uniformity and fluctuation in the case of air exchange. During the working process, the volatile gas in the workroom is always at low concentration, so that the evaporation speed of the solvent in the insulating varnish is accelerated, the drying time is shortened, and the energy saving effect is obvious.
Safety
Selection of famous brand electrical components at home and abroad, the control system is safe and reliable, and the temperature control system is sensitive.
The overtemperature alarm and protection system is set up. When the temperature is abnormal in the box, the heating power is cut off and the sound and light alarm is sent out.
A heater with low surface load and low surface temperature eliminates the most important source of danger that causes combustion or explosion.
Overpressure protection system, when the wind pressure is abnormal (that is, when the exhaust is not normal), it will send out sound and light alarm and cut off the power to ensure safety.
The full air volume ventilation mode makes the dangerous gas concentration within the safe range. The box has a large area explosion-proof door, which can reduce the loss to the minimum in the event of accident.
Good temperature uniformity, full circulation ventilation mode and unique large air volume hot air circulation system make the equipment have good temperature uniformity during the whole heating process.
The bottom of the box laying track, according to the different drying product weight choose manual drive, drive, drive roller rack blunt, traction drive car row of different car driving mode.
The selection of distributed computer control system, there is no paper or paper temperature recorder, insulation resistance tester etc..
