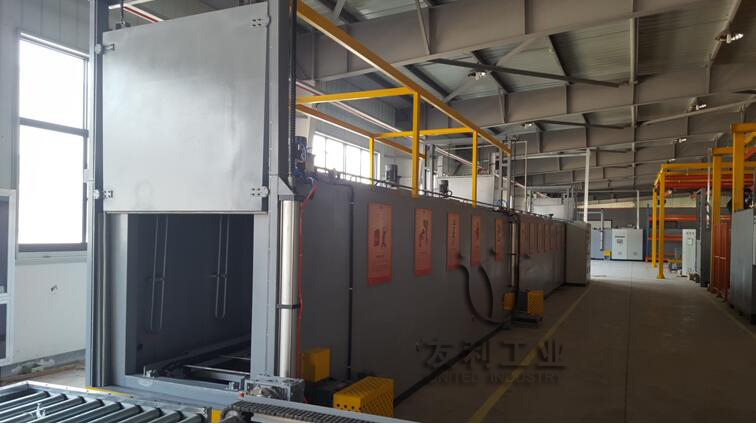

Mould preheating tunnel furnace
n order to meet the requirements of large batch and automatic production mode of mutual inductor, our company has developed a number of fully automatic mold preheating tunnel furnace. Compared with the same products, this kind of product has the advantages of high drying automation, short drying cycle and less energy consumption per unit work piece. It is well received by customers.
Details
The performance characteristics.
1. The thermal insulation material adopts low thermal conductivity high quality insulation cotton, and the energy saving effect is obvious.
2. the program of intelligent controller, the P I D parameter self-tuning, solid state relay power adjustment, contactless continuous adjustment, automatic completion of the whole process of drying process, can meet the requirements of any curing curve, simple operation, reliable performance; electrical control components selection at home and abroad, the reliability of electric control part to achieve the optimal curing furnace;
3. By using optional paper recorder, printing record, paperless recorder or computer centralized control, we monitor the whole process and analyze the results of drying and curing.
4. According to the different placement of the baked products, the reasonable hot air circulation mode (top heating, vertical air supply, bottom heating horizontal air supply, side heating and vertical air supply) is adopted to make the temperature in the studio more uniform and the coil drying effect is better.
5. The ultra - temperature alarm system is set up, when the temperature is abnormal, it can cut off the heating power and send out the sound and light alarm.
6. The low voltage lighting system and the observation window can be selected to observe the solidifying condition of the workpiece at any time.
7. Laying track at the bottom, the different driving modes, such as manual drive, blunt rack drive and traction trolley drive, can be selected according to the different weight of the baked products.
|
|
UB-1 |
UB-2 |
UB-3 |
UB-4 |
UB-5 |
UB-6 |
UB-7 |
|
Studio mm £¨W*D*H£© |
1200¡Á1700 ¡Á1000 |
1500¡Á1600 ¡Á1600 |
2000¡Á2000 ¡Á2000 |
2000¡Á3000 ¡Á2000 |
2000¡Á350 0¡Á2000 |
2200¡Á4000 ¡Á2000 |
3000¡Á5000 ¡Á3000 |
|
Temperature£¨¡æ£© |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
Supply voltage(V) |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
3¡ª380 |
|
Power frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Heating Rate£¨kw£© |
18 |
27 |
45 |
54 |
63 |
72 |
96 |
|
Temperature uniformity (%) |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
¡À2.5 |
|
Temperature fluctuation£¨¡æ£© |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
¡À1 |
